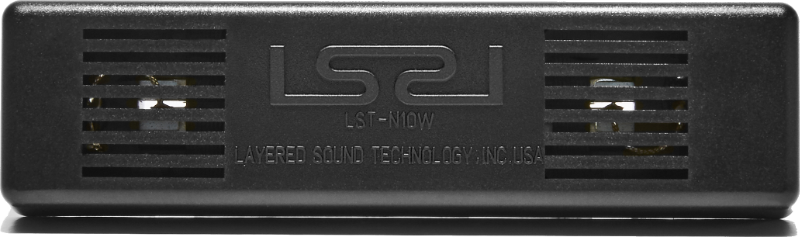

LS-2697

LS-2697

Nominal IMP 4.0 ± 0.6Ω at 1.0V 2000Hz   Nominal Power RMS 10 W
Frequency Range Fo ~ 20kHz   Free Air Resonance 450Hz ± 20% at 1.0V
Weight 65.5g   Dimensions(WxDxH/mm) W17.7 x D97 x H26.2

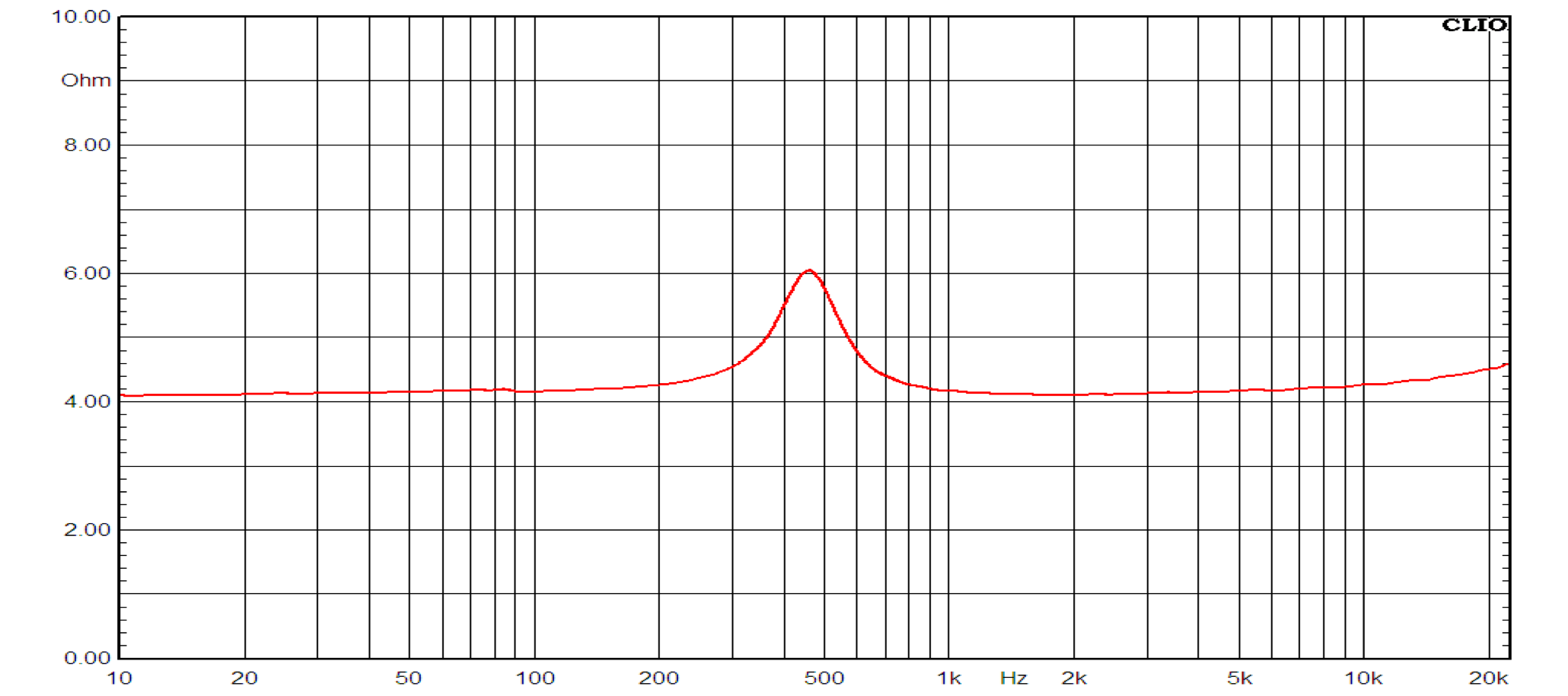

IMPEDANCE Freq

LS-2697

"text"

“ the difference is easy to hear ”



“ the difference can be measured
(for those who don't believe their ears...) ”



“ it's easy to demonstrate this ”



“ it can be demonstrated on location ”



“ it's easy to install ”



“ it can reduce the cost of an installation
by reducing man-hours and materials.
it provides the option to upgrade existing systems,
rather than replace them ”


AMPLIFIER
D-CLASS POWER AMPLIFIER

AMPLIFIER AMPLIFIER

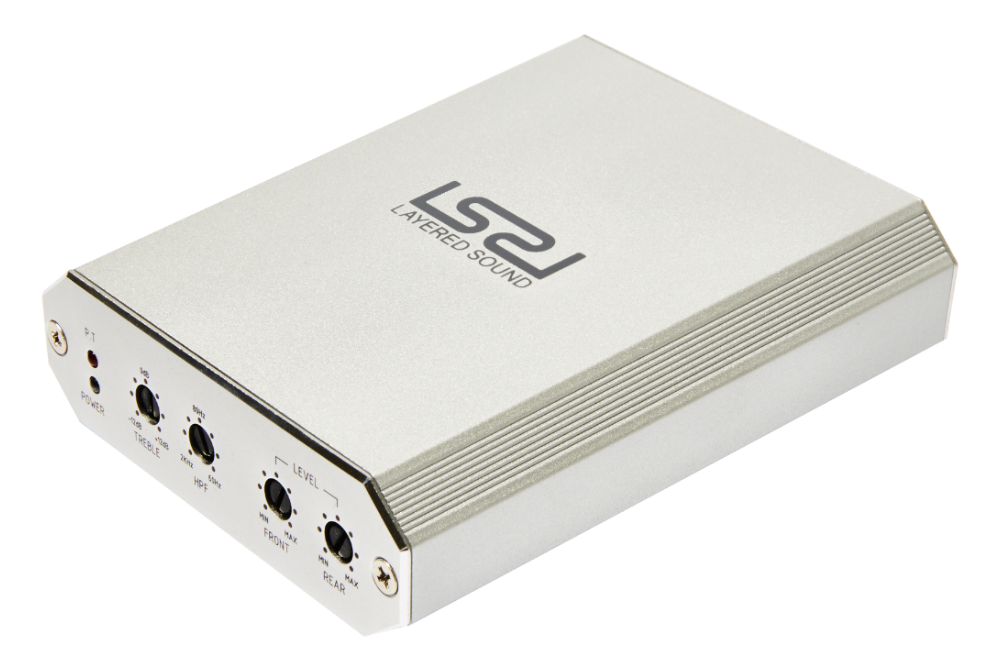

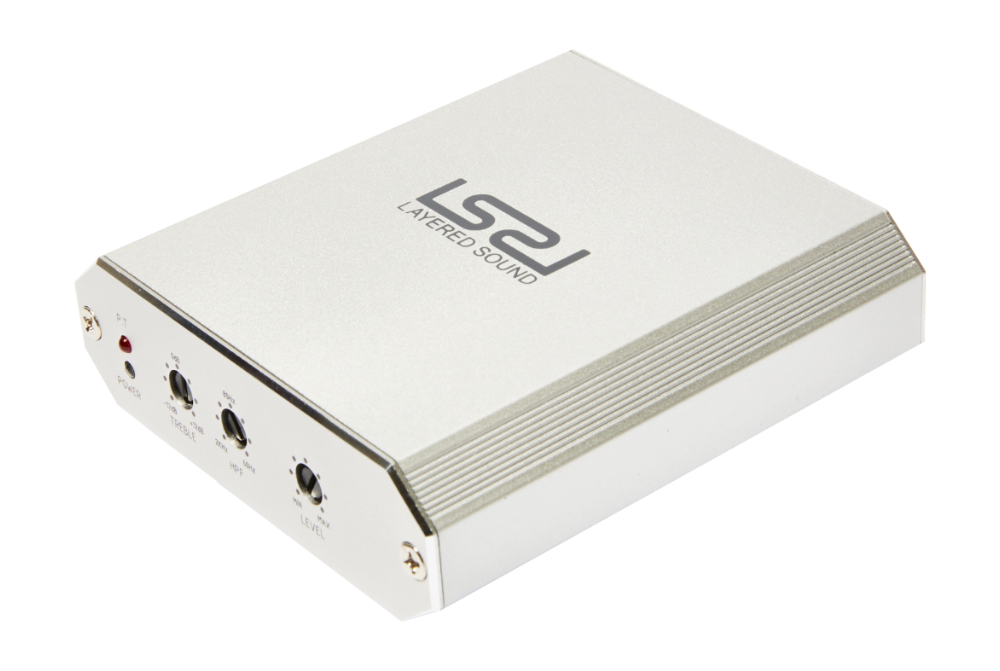

< DA - 50 > < DA - 100 >
model DA-50 DA-100
Operatuing Voltage DC 14.4V (11~16V allowable) DC 14.4V (11~16V allowable)
Audio power output at 14.4V DC at 14.4V DC
- Power Rating into 4 ohms THD 1% 20W x 2CH 20W x 4CH
Output Impedance 4ohm~8ohm 4ohm~8ohm
Signal to Noise Ratio 90dB 90dB
Frequench Response -3dB 15Hz~30kHz 15Hz~30kHz
- Treble 10KHz ±12dB 10KHz ±12dB
- High Pass Filter 60Hz~2KHz 60Hz~2KHz
LOW Input Sensitivity 200mV~ >10V 200mV~ >10V
HI Input Sensitivity 500mV~ >20V 500mV~ >20V
LOW Level Input Impedance 47Kohm 47Kohm
HI Level Input Impedance 2.2Kohm 2.2Kohm
Dimension W97mm x H30mm x L104mm W97mm x H30mm x L131mm
Fuse CHIP 5A CHIP 5A X 2
